SDS Storage Platforms by Western Digital
Boost your next generation storage infrastructure with Western Digital storage solutions. With modern workloads, the need for scalable data storage capacity continues to increase exponentially. Western Digital Storage Platforms are an essential part of your next-generation software defined storage (SDS) deployment. These solutions embody a perfect balance between density, performance, reliability, and affordability.

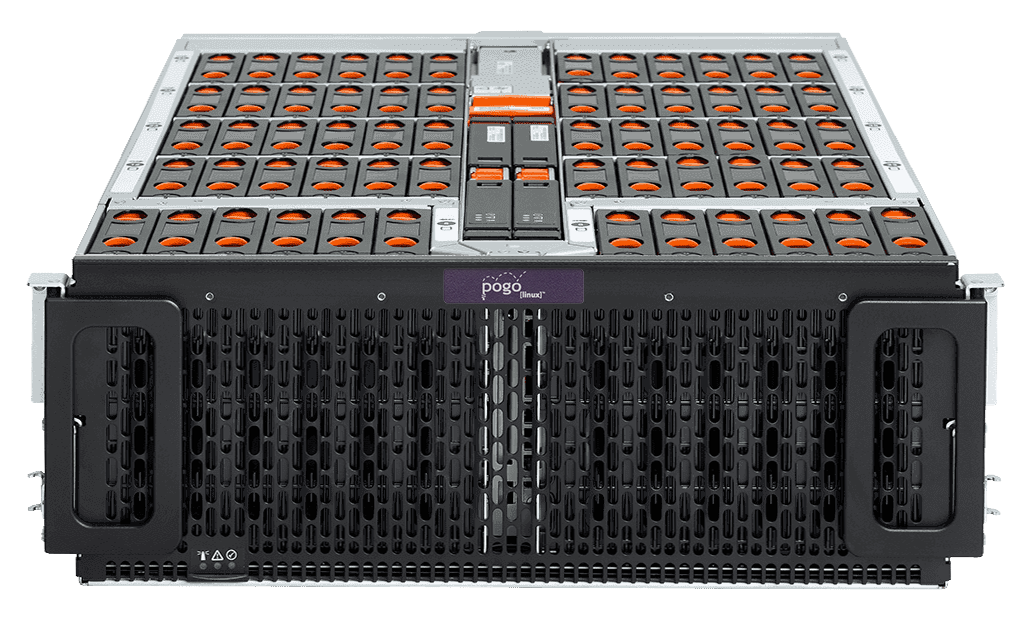

Ultrastar Data60 Hybrid Storage Platform
WD JBODs are incredibly flexible, empowering organizations to specify a combination of Solid State Drives and Hard Drives to strike a perfect balance between performance and capacity, while sacrificing neither. The Ultrastar Data60 sports up to 840 TB of raw storage in a well engineered 4U chassis. Performance and reliability are further enhanced by the use of Western Digital HelioSeal® hard drives.
- Up to 840 TB of storage in a 4U chassis
- Up to 60 Western Digital Ultrastar Hard Drives (SAS or SATA)
- Hybrid support – Create an acceleration tier with up to 24 SSDs
- IsoVibe™ technology reduces chassis vibration, thereby ensuring consistent HDD performance
- The ArcticFlow™ cooling system delivers cool air to the center of the chassis, extending the life of the components while using less power and creating less noise and vibration
- Power supplies, IO modules, and fans are all hot-swappable
- Comprehensive 5 Year Warranty includes the drives

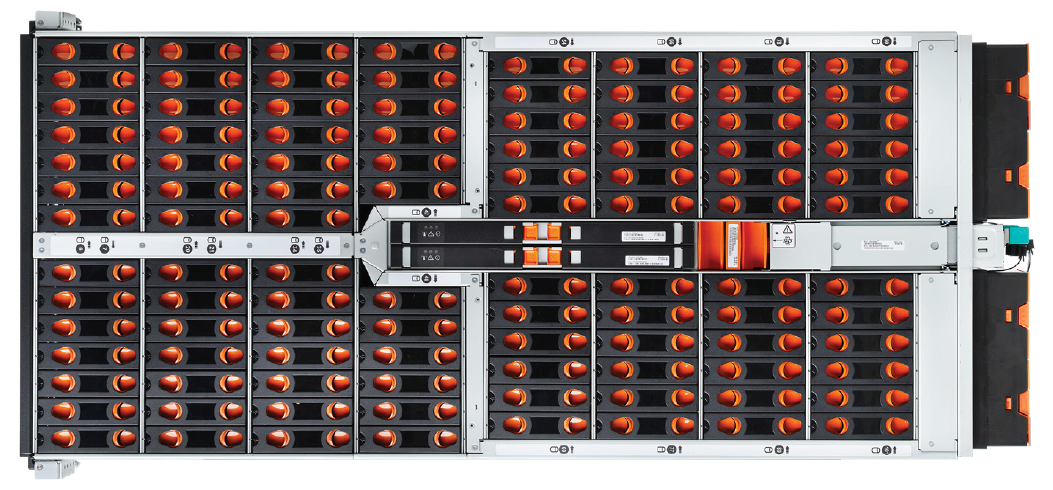

Ultrastar Data102 Hybrid Storage Platform
Designed for enterprise workloads, WD JBODs employ next generation design features, greatly extending the life span of the storage media. The Ultrastar Data102 raises the ante with up to 1.4 PB of raw storage in a well engineered, compact 4U chassis. This platform delivers all the advanced features of the Data60, with greatly increased capacity.
- Up to 1.4 PB of storage in a feature-packed 4U chassis
- Up to 102 Ultrastar Hard Drives (SAS or SATA)
- Hybrid support – Create an acceleration tier by placing SSDs in up to 24 drive slots
- IsoVibe™ technology reduces chassis vibration, by suspending the drives in the chassis, isolating them from vibration
- The ArcticFlow™ cooling system brings cool air to the center of the chassis, maximizing cooling while reducing power consumption
- Power supplies, IO modules, and fans are all hot-swappable
- Comprehensive 5 Year Warranty includes the drives

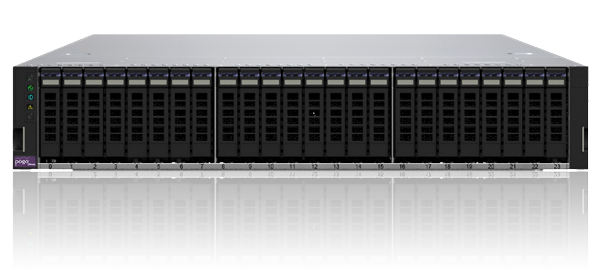

2U24 Flash Storage Platform
The Western Digital 2U24 Flash Storage Platform was engineered to meet the demands of enterprise level workloads that require highly dense and available flash storage. The 2U24 provides nearly instantaneous data availability, along with ironclad reliability and easy maintenance. All-flash storage ensures maximum IOPS with low latency. You can start with as few as 12 SSDs, adding modules at the front panel as needed, scaling all the way up to 184 TB. Improve your compute-to-capacity ratio by decoupling data processing and storage.
- Up to 24 Ultrastar 2.5″ SSD modules provide up to 184 TB of storage in a compact 2U chassis
- Start with as few as 12 SSDs (SAS or SATA) and upgrade on the fly as needed
- Up to six 12 Gb/s SAS3 connections
- Upgradeable firmware allows for updates without interruption
- Power supplies, IO modules, and fans are all hot-swappable
- Comprehensive 5 Year Warranty
Configure Yours Today
These Western Digital Storage Platforms address the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and integrators that require dense, shared HDD or hybrid storage. Contact the Pogo Linux Storage Engineering Team to learn more.
