Velocity D61

  • Add to Cart

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

  • View Specs

    Obtain a formal quote for this configuration by clicking the “REQUEST A QUOTE” button. Then, enter your email address and provide any pertinent configuration notes. You will then receive an email with a link to a pdf of the quote. The Pogo Linux sales engineering team will review your configuration and respond via email with any comments or suggestions.

Generate PDF review my config

$9,062.40

  • Dual 4th Gen Intel Xeon Scalable Processors
  • Up to 4TB DDR5 Memory
  • Up to 4 NVIDIA GPU Accelerators
  • Dual 10-Gigabit Ethernet
  • Integrated IPMI 2.0+KVM with Dedicated LAN
  • 2000W Redundant Titanium Power Supply
  • Great for AI/Deep Learning Training, 3D Rendering, Animation, Modeling and High Performance Computing
Velocity D61
Processor and Memory
CPU
Memory
M.2 NVMe Drives
M.2 NVME SSD
Drive Selection
NVMe/SATA/SAS 1-2

More Info

NVMe/SATA/SAS 3-4

More Info

NVMe/SATA/SAS 5-6

More Info

NVMe/SATA/SAS 7-8

More Info

GPU Accelerators
GPU Accelerators
NVIDIA NVLINK

NVIDIA NVLink Bridge for A100/H100   $1,066.67

PCI Express Expansion
PCI Express Expansion Slot 1
PCI Express Expansion Slot 2
PCI Express Expansion Slot 3
TPM - Trusted Platform Module

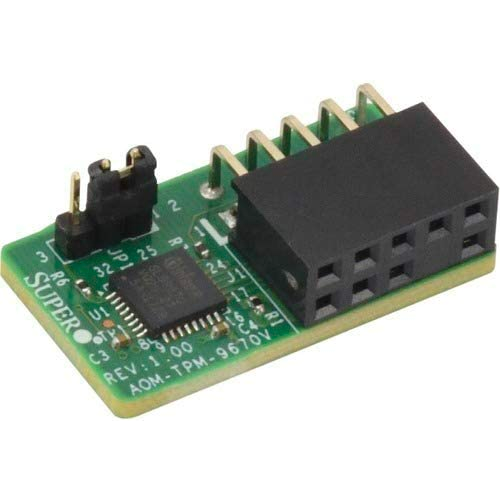

Trusted Platform Module - TPM 2.0   $92.00

Optional Rack Rails

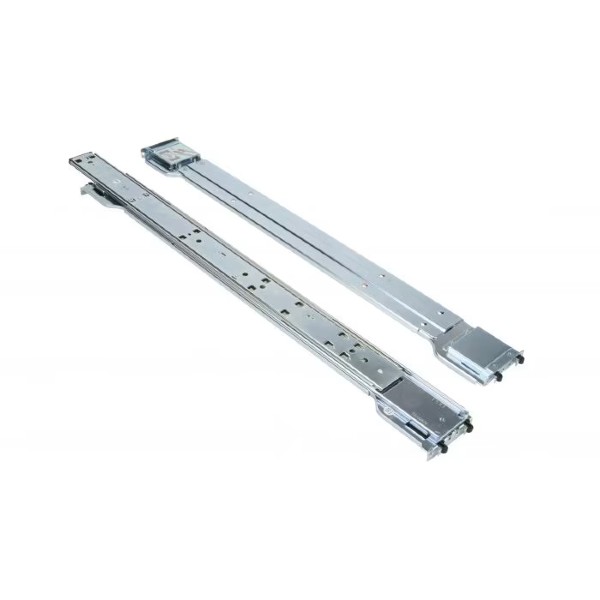

4U Quick-Release Mounting Rails for Standard-Depth Rack 17.2" W

Operating System
Operating System
RAID Configuration
RAID Level
Peripherals
Keyboard and Mouse
Speakers
LCD Monitors
Support Options
Warranty and Support

Velocity D61

Velocity D61
Processor Support
CPU
5th Gen Intel® Xeon® Scalable processors
Socket
Dual Socket E (LGA-4677)
Memory
Dimm Slots
16
Type
4800MHz ECC DDR5 DRAM
Capacity
Up to 4TB: 16x 256 GB DRAM
OnBoard Devices
Chipset
Intel® C741
Network Controller
Intel® X550-AT2
Input/Output
LAN
2x 10GbE BaseT
USB
2 USB 3.2 Gen1x2; port(s) (2 Front_USB) 1 USB 3.2 Gen2x1 (Type C) port(s) (1 Rear_USB) 3 USB 3.2 Gen1 port(s) (3 Rear_USB)
VGA
1 VGA port(s)
Chassis
Form Factor
4U/Tower
Depth
265 mm
Height
40 mm
Width
73.5 mm
Average Weight
150 Lbs
Drive Bays
Hot Swap
8x 3.5" hot-swap NVMe/SATA/SAS drive bays (8x 2.5" NVMe hybrid)
OS
2 M.2 NVMe
Power
Spec
1U 2000W Redundant Titanium AC Power supply, 73.5x40x265mm, CRPS
Input
100-127Vac / 50-60Hz 200-240Vac / 50-60Hz
Expansion
PCI-Express (PCIe)
7 PCIe 5.0 x16 FHFL slot(s)
System Cooling
Fans
4 heavy duty fans with optimal fan speed control
